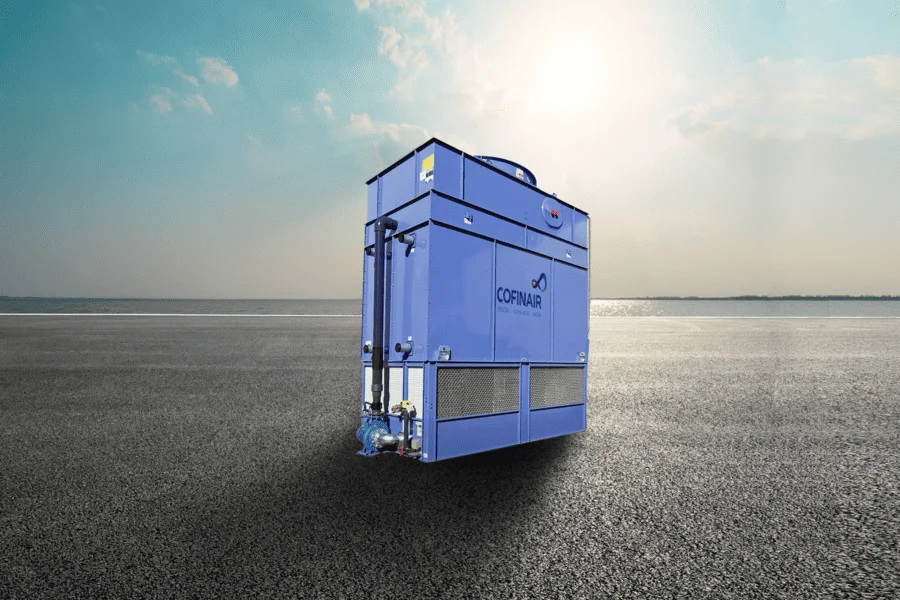

The CFG-A evaporative Cooler and Condenser is an evaporative heat exchanger designed to combine refrigerant condensation and water or glycol cooling within a single compact system. This innovative 2-in-1 configuration integrates two separate high-efficiency heat exchange coils: one dedicated to refrigerant condensation, where the gas changes phase into liquid, and one dedicated to cooling water or glycol solutions circulating within the process.
During operation, the coils are continuously wetted by a water distribution system, while axial fans generate an airflow in a counterflow direction to the falling water. Heat is removed through the combined effect of air convection and water evaporation, allowing the unit to achieve excellent thermal performance while maintaining low energy consumption.
Designed for reliability and long service life, the CFG-A evaporative Cooler and Condenser features a robust construction, optimised coil PED-certified (Pressure Equipment Directive 2014/68/EU), and an efficient axial fan ventilation system. Thanks to its compact footprint and dual functionality, the CFG-A provides an efficient and flexible solution for industrial systems requiring simultaneous refrigerant condensation and process fluid cooling, reducing installation complexity, optimising space, and lowering overall operating costs.
⚡ Power: 148 – 7281 kW
Axial fans
Evaporative Cooler and Condenser
Single unit capable of condensing refrigerant and cooling water or glycol circuits.
Full-surface coils PED-certified and an optimized L/G ratio maximize heat-exchange performance.
Optimized airflow management, efficient axial fans, and high-performance coils minimize operating costs.
Axial fans with controlled peripheral speed ensure reduced acoustic impact.
High capacity in a single casing reduces installation space.
Operating in dry conditions significantly reduces water consumption.
Dual heat exchange coil configuration
Axial fans section
Integrated heat exchange system
High thermal efficiency
Durable structure (Z-725)
Simplified maintenance access
Food industry
Ice production industry
Refrigeration
Chemical & Pharmaceutical industries
HVAC
Industrial cooling
Our teams are ready to support you with tailored cooling systems designed for your most demanding applications.
